• This Inverted Cylinder Stand is suitable for cylinders with a Centre Isolating Valve
• Includes wire base, two supporting legs & shortened lifting bar
• Includes Twin Bands Fixing Kit
• Does not include Steel Twin bands
• Please be aware that this model does not fit any twinning bands which have the very narrow middle section (where the studding fits through), if unsure which twin bands you have, please contact us for furtheradvice.

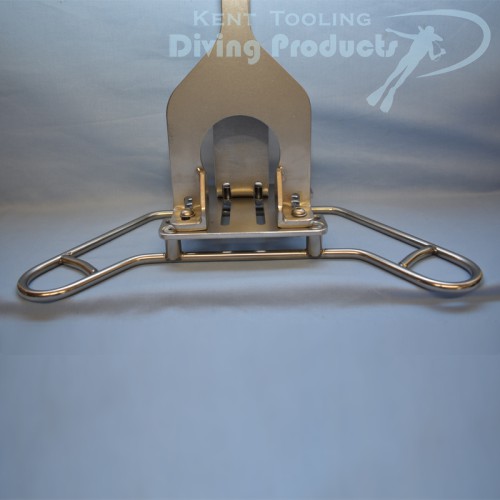

This stand enables you to support your twin set if you are diving with it in the inverted position, and also helps protect your cylinder valves. It is manufactured from marine grade 316 stainless steel, and is designed to take up to twin 15 litre cylinders.

You can use the stand either with the cylinders attached by a manifold or as an independent cylinder set up. You are able to adjust the up and down movement using the holes that are in the two 8mm thick upright support legs. These are then bolted onto the base frame, enabling you to have the cylinders in a comfortable position when sitting on a dive bench.

The kit includes a twin band fixing kit, please indicate whether you require 8mm or 10mm stud size.

There are two positions in the base plate. One is for the manifold setup and the other is for the independent setup. These are governed by the slots that are in the baseplate and then bolted together with the fixing kit supplied. There is also a small lift bar which helps carrying the twin set in the inverted position this also has lots of room for adjustment. There are 2 types of base frame a rectangle version or the one shown in the picture. All the frame corners have an extra piece in them so you can clip cylinder stages or reels etc. to it without them moving around the base frame.
